Order Code: LED PROZ188

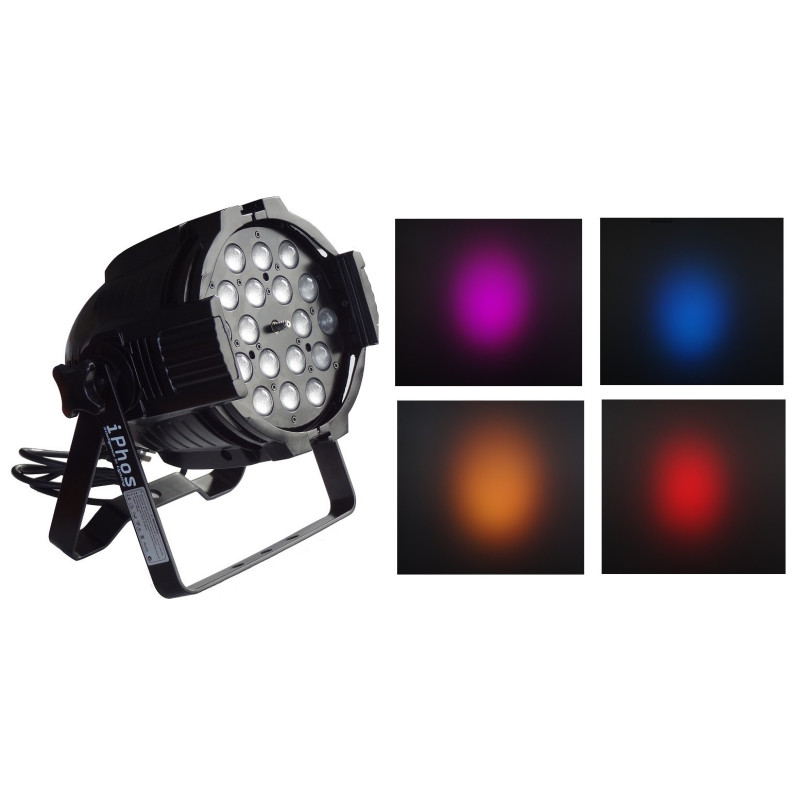

Par Zoom Light
RRP $689.00
Including GST
Including GST
Next Working Day
Order code: LEDPROZ188
Available NowFeatures:
RGBA colour mixing with or without DMX controller
5 distinct dimming curves
User defined programs
LED display with password protection
Transfer custom programs between fixtures
Operating modes: DMX512 Connection with ID address/Master-Slave/Sound
DMX channels (11 channels or 6 channels )
11 Channel Mode (STAG):
|
Channel |
Value |
Description |
|
1 |
000-255 |
Master Dimmer: 0-100% |
|
2 |
000-255 |
Red Dimmer: 0-100% |
|
3 |
000-255 |
Green Dimmer: 0-100% |
|
4 |
000-255 |
Blue Dimmer: 0-100% |
|
5 |
000-255 |
Amber Dimmer: 0-100% |
|
6 |
000-009 |
No function |
|
010-255 |
Macro colour control |
|
|
7 |
000-001 |
No function |
|
002-255 |
Strobe (0-20Hz) or auto speed (only when using ch.8) |
|
|
8 Auto & custom program |
000-015 |
No function |
|
016-031 |
Dim to Bright |
|
|
032-047 |
Bright to Dim |
|
|
048-063 |
Dim to Bright to Dim |
|
|
064-079 |
14 colour change 1 |
|
|
080-095 |
14 colour change 2 |
|
|
096-111 |
14 colour change 3 |
|
|
112-127 |
Gradual change |
|
|
128-143 |
Fade-out |
|
|
144-159 |
Fade-in |
|
|
160-175 |
Strobe and colour change |
|
|
176-191 |
Cust1 - custom program 1 |
|
|
192-207 |
Cust2 - custom program 2 |
|
|
208-223 |
Cust3 - custom program 3 |
|
|
224-229 |
No function |
|
|
230-234 |
Remain 5 seconds, reset dynamo |
|
|
235-239 |
No function |
|
|
240-255 |
Sound control - 14 colour change |
|
|
9 |
000-255 |
Dimming Speed (fast to slow) |
|
10 |
000-255 |
Zoom 10°- 40° |
|
11 |
000-255 |
Zoom Speed (fast to slow) |
6 Channel Mode (co1.d):
|
Channel
|
Value
|
Description
|
|
1 |
000-255 |
Dimming |
|
2 |
000-255 |
Red |
|
3 |
000-255 |
Green |
|
4 |
000-255 |
Blue |
|
5 |
000-255 |
Amber |
|
6 |
000-255 |
Zoom |
Specifications:
Voltage Rating: AC100V-240V 50-60Hz
Power Rating: 150W
LED Quantity: 18pcs, 4 in 1 LED's (RGBA)
Beam Angle: 10°-40° (DMX Motorized)
Ingress Protection: IP20
Packed Dims (cm): 31*37*40
N/W (kg): 5.0
