      200watt, 3200K, Warm White LED, Fresnel Projector with Manual Zoom

      RRP $895.00
      Including GST
      Next Working Day

      Order code: FWZ-200M

      Available Now

         Click HERE to Download Operating Manual

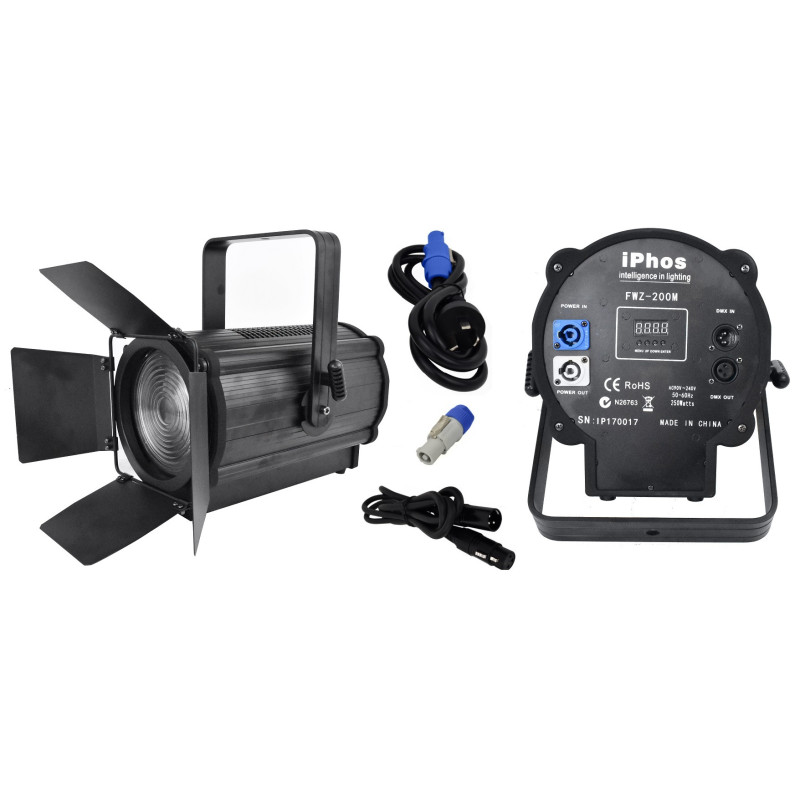

               What is included:

        ·      1 x Light Fixture (including Yoke Bracket and Rotatable Barn Doors)

        ·      1 x 1.5mtr, 3pin, Male XLR to Female XLR Signal Cable

        ·      1 x 1.4mtr Mains Power Cable - AS/NZS 3112 Male Plug to Powercon (NAC3FCA type - Blue)

        ·      1 x Powercon Connector (NAC3FCB type - White) for power-out

        ·      1 x User Manual

                Features:

        ·         Flicker-free dimmer makes for a video friendly device

        ·         Built-in temperature sensor - automatically adjusts the light output, when the operating temperature aprroaches       maximum operating levels, to prevent the LED lamp from overheating.

        ·         1, 2 or 3 channels DMX channel operation

        ·         DMX512 signal-present indicator.

        ·         4 x 7segment digital display.

        ·         Detachable power and signal cables

        ·         Uniquely shaped reflective dish for a hotspot-free projection

        Electrical:
        Input Voltage, 90-240V AC-50/60Hz
        Max power: 250W


        Light Source:
        LED: 1 x 200watt 3200K, Warm White

        Control:
        Control Protocol: DMX512
        Personality: 1/2 channels
        Fixture Connection: Power in/out (powercon), DMX Data in/out.
        Control Mode: DMX, Stand Alone
        Beam Angle: Manual Zoom - 17°         to 50°

        Optical System:
        Dimmer: 0-100% Linear dimming, high speed, flicker-free driver chip (video friendly).
        Strobe: 0-20Hz
        Beam angle: 50        °

        Environment:
        Dry / Indoor
        Ingress Protection Rating: IP20
        Operation Temperature:-20'C - +40'C



        Physical:
        Lighting Fixture Dimensions including Bracket – Folded for roadcase (L*H*W): 445*245*290
        Lighting Fixture Dimensions including Bracket – Hanging, B/D at 90deg (L*H*W): 515*372*290
        Lighting Fixture Dimensions including Bracket – Hanging, B/D at 180deg (L*H*W): 30*480*480
        Barn Doors  (Max Spread/180deg open) – 475*480mm
        Net Weight (excluding cables): 7.72kg
        Shipping (Gross) Weight: 9.48kg
        Shipping Dimensions: 480*355*380
        Cooling: Low Noise Fan Cooling
        Housing: Die-cast Aluminium
