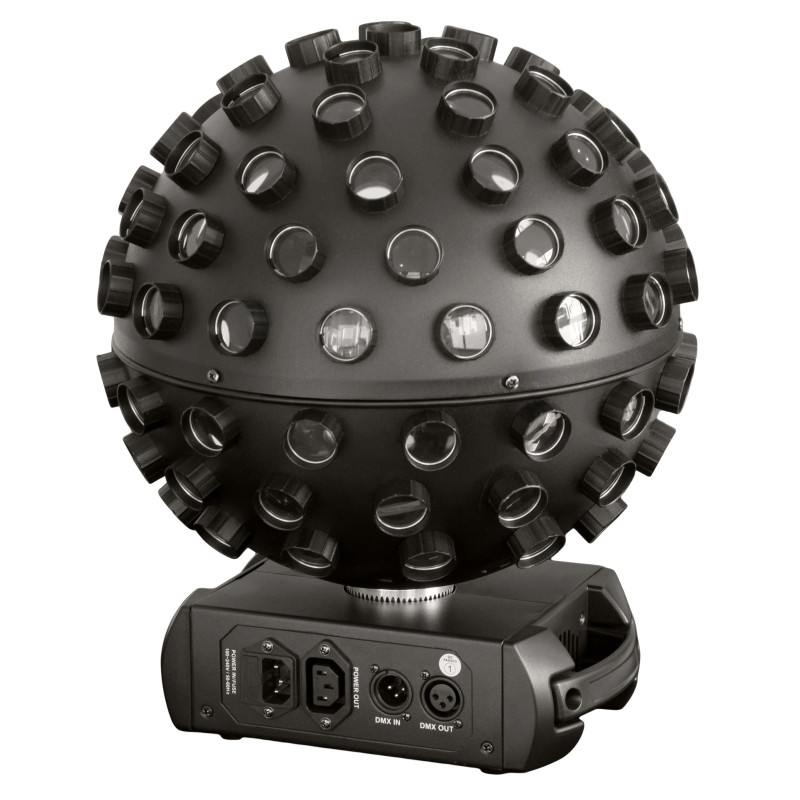

Order Code: NOVA RAY
(5*18W RGBWAUV 6in1 LED Ball)
RRP $595.00
Including GST
Including GST
Next Working Day
Order code: NOVA RAY
Available NowClick HERE to Download Operating Manual
What is included:
· 1 x Light Fixture
· 1 x 1.5mtr, 3pin, Male XLR to Female XLR Signal Cable
· 1 x 1.4mtr Mains Power Cable - AS/NZS 3112 Male Plug to IEC Socket
· 1 x Omega Bracket
· 1 x Eye Bolt
· 1 x User Manual
Features:
iPhos reserves the right to change the specifications without prior notice.
· 4 x 7segment, digital display, control board
· Suitable for Night Club, Bar, Band Venue, Mobile DJ and Home Party.
· DMX512 signal-present indicator.
· 4 x Operation Modes
· Flicker-free dimmer makes for a video friendly device.
· Detachable power and signal cables
Electrical:
Input Voltage, 100-240V AC-50/60Hz
Max power: 150watts
Light Source:
LED: 5pcs, 18W 6in1 LED (RGBWA + UV)
Control:
Control Protocol: DMX512
DMX Personality: 3 and 11 channels
Fixture Connection: Power in/out (IEC), 3-pin DMX Data in/out.
Control Mode: DMX, Sound to Light, Auto run and Master/slave
Optical System:
Dimmer: 0-100% Linear dimming, high speed, flicker-free driver chip (video friendly).
Strobe: 0-20Hz
Beam angle: 330°
Environment:
Dry / Indoor
Ingress Protection Rating: IP20
Operation Temperature:-20'C - +40'C
Physical:
Lighting Fixture Dimensions (excluding Omega Bracket): 377*315*315mm (H*W*D*)
Omega Bracket Height: 5.3mm
Omega Bracket Weight: 0.22kg
Power and DMX cables weight: 0.22kg
Net Weight (excluding power cable): 4.12kg
Net Weight (including bracket, power cable and DMX cable): 4.66kg
Shipping (Gross) Weight: 5.52kg
Unit Dimensions: 300*300*380mm (W*D*H)
Shipping Dimensions: 455*375*37.5mm
Housing: Steel and plastic
Cooling: Low Noise Fan Cooling
