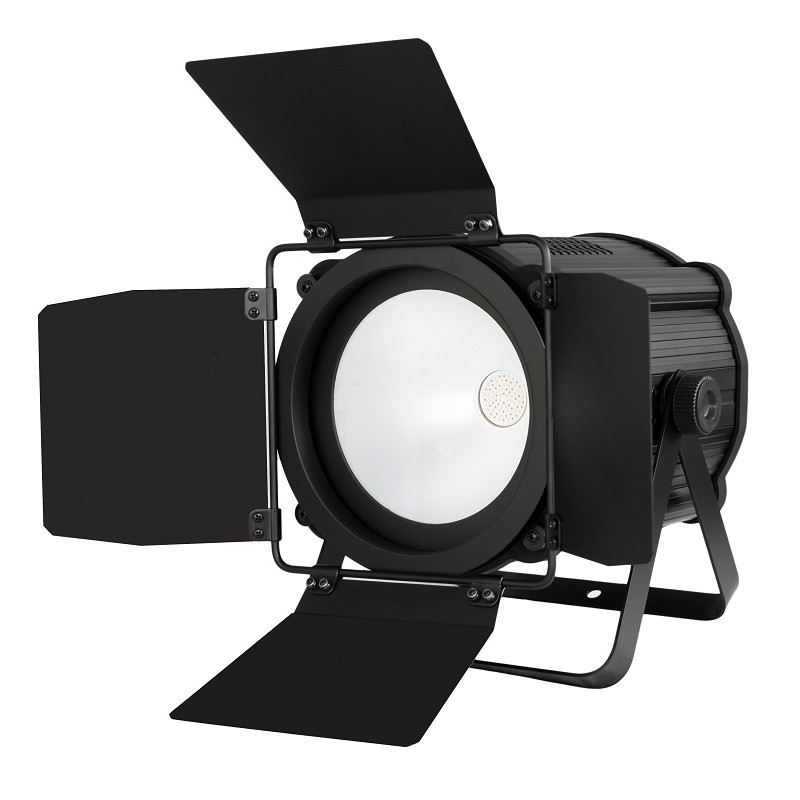

iPhos: COB-200A
200watt RGBA (Red, Green, Blue, Amber) LED Projector
RRP $660.00
Including GST
Including GST
Next Working Day
Order code: COB-200A
Available NowClick HERE to Download Operating Manual
Features:
· Flicker-free dimmer makes for a video friendly device.
· Built-in temperature sensor - automatically adjusts the light output, when the operating temperature aprroaches maximum operating levels, to prevent the LED lamp from overheating.
· 8 x DMX channel operation
· DMX512 signal-present indicator
· 4 x 7segment digital display
· Detachable power and signal cables
· Uniquely shaped reflective dish for a hotspot-free projection
What is included:
· 1 x Light Fixture (including dual Yoke Brackets and Rotatable Barn Doors)
· 1 x 1.5mtr, 3pin, Male XLR to Female XLR Signal Cable
· 1 x 1.4mtr Mains Power Cable - AS/NZS 3112 Male Plug to Powercon (NAC3FCA type - Blue)
· 1 x Powercon Connector (NAC3FCB type - White) for power-out
· 1 x User Manual.
Display function table
All functions are confirmed, and committed to memory by pressing the ENTER (D) key
|
No.
|
Function
|
Description
|
|
1 |
A001 |
DMX Channel Address – 001 to 512
Use B and C keys to Change the DMX Assignment Number |
|
2 |
CC99
|
RGBA Chase Speed - Slow to Fast (01-99)
Snap from Cool White to Warm White
Use B and C keys to Modify Chase Speed
|
|
3 |
CP99 |
RGBA Gradient - Slow to Fast (01-99)
B, C key to modify the gradient speed
|
|
4
|
DE99 |
RGBA Pulse Speed - Slow to Fast (01-99) Use B and C keys to Modify Pulse Speed
|
|
5
|
bEbE |
Audio Trigger Utilizing Built-In Microphone
Output Alternates Between Red, Green, Blue and Amber
|
|
6
|
r255
|
Red Colour Selection, (000-255) Dim to Bright
Use B and C keys to Modify Light Output Intensity
|
|
7
|
G255
|
Green Colour Selection, (000-255) Dim to Bright
Use B and C keys to Modify Light Output Intensity
|
|
8
|
B255
|
Blue Colour Selection, (000-255) Dim to Bright
Use B and C keys to Modify Light Output Intensity
|
|
9
|
o255
|
Amber Colour Selection, (000-255) Dim to Bright
Use B and C keys to Modify Light Output Intensity
|
DMX512 Channel Specification (8ch)
|
No.
|
Function
|
Description
|
|
Channel 1
|
Dimmer
|
Master (RGBW) Linear Dimming - 0-100% (dark to light)
|
|
Channel 2
|
Strobe
|
DMX Value: 0 - LED On
DMX Value 1-255 Flash, 0.5Hz to 20Hz
|
|
Channel 3
|
Macro
Functions
|
DMX Value: 0 to 49 - LED Off
DMX Value: 50 to 99 – RGBA Colour Chase (100% output)
DMX Value: 100 to 149 – RGBA Fade (100% output)
DMX Value: 150 to 199 – RGBA Gradient Colour Chase (100% output)
DMX Value: 200 to 255 – Sound Active (High to Low Sensitivity)
|
|
Channel 4
|
Macro Speed
|
Chase and Fade Speed (Slow to Fast)
|
|
Channel 5
|
R Dimmer
|
Red Linear Dimming – 0-100% (dark to light)
|
|
Channel 6
|
G Dimmer
|
Green Linear Dimming – 0-100% (dark to light)
|
|
Channel 7
|
B Dimmer
|
Blue Linear Dimming – 0-100% (dark to light)
|
|
Channel 8
|
A Dimmer
|
Amber Linear Dimming – 0-100% (dark to light)
|
Specifications:
Electrical:
Input Voltage, 90-240V AC-50/60Hz
Max power: 250W
Light Source:
LED: 1 x 200watt COB, RGBA (Red, Green, Blue, Amber)
Control:
Control Protocol: DMX512
Personality: 8 channels
Fixture Connection: Power in/out (powercon), DMX Data in/out.
Control Mode: DMX, Stand Alone
Optical System:
Dimmer: 0-100% Linear dimming, high speed, flicker-free driver chip (video friendly).
Strobe: 0-20Hz
Beam angle: 60°
Environment:
Dry / Indoor
Ingress Protection Rating: IP20
Operation Temperature: -20'C - +40'C
Physical:
Lighting Fixture Dimensions including Bracket (L*H*W): 340*210*255mm
Net Weight (excluding power cable): 5.54kg
Net Weight (including power cable): 5.88kg
Shipping (Gross) Weight: 6.34kg
Shipping Dimensions: 240*240*330mm
Housing: Die-cast Aluminium
Cooling: Low Noise Fan Cooling
