Order Code: COB-200W
200watt, Warm White LED, Wash Projector
Click HERE to Download Operating Manual

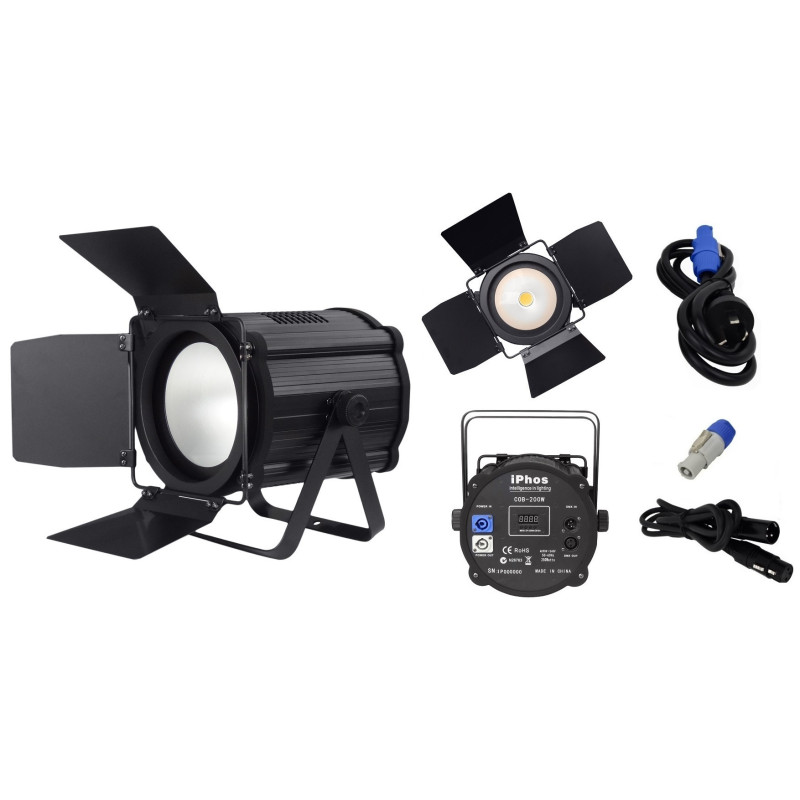

What is included:
· 1 x Light Fixture (including dual Yoke Brackets and Rotatable Barn Doors)
· 1 x 1.5mtr, 3pin, Male XLR to Female XLR Signal Cable
· 1 x 1.4mtr Mains Power Cable - AS/NZS 3112 Male Plug to Powercon (NAC3FCA type - Blue)
· 1 x Powercon Connector (NAC3FCB type - White) for power-out
· 1 x User Manual
Features:
· Flicker-free dimmer makes for a video friendly device
· Built-in temperature sensor - automatically adjusts the light output, when the operating temperature aprroaches maximum operating levels, to prevent the LED lamp from overheating.
· 2 x DMX channel operation
· DMX512 signal-present indicator.
· 4 x 7segment digital display.
· Detachable power and signal cables
· Uniquely shaped reflective dish for a hotspot-free projection
Electrical:
Input Voltage, 90-240V AC-50/60Hz
Max power: 250W
Light Source:
LED: 1 x 200watt COB, Warm White
Control:
Control Protocol: DMX512
Personality: 2 channels
Fixture Connection: Power in/out (powercon), DMX Data in/out.
Control Mode: DMX, Stand Alone
Optical System:
Dimmer: 0-100% Linear dimming, high speed, flicker-free driver chip (video friendly).
Strobe: 0-20Hz
Beam angle: 60°
Environment:
Dry / Indoor
Ingress Protection Rating: IP20
Operation Temperature: -20'C - +40'C
Physical:
Lighting Fixture Dimensions including Bracket (L*H*W): 340*210*255mm
Net Weight (excluding power cable): 5.54kg
Net Weight (including power cable): 5.88kg
Shipping (Gross) Weight: 6.34kg
Shipping Dimensions: 240*240*330mm
Housing: Die-cast Aluminium
Cooling: Low Noise Fan Cooling
