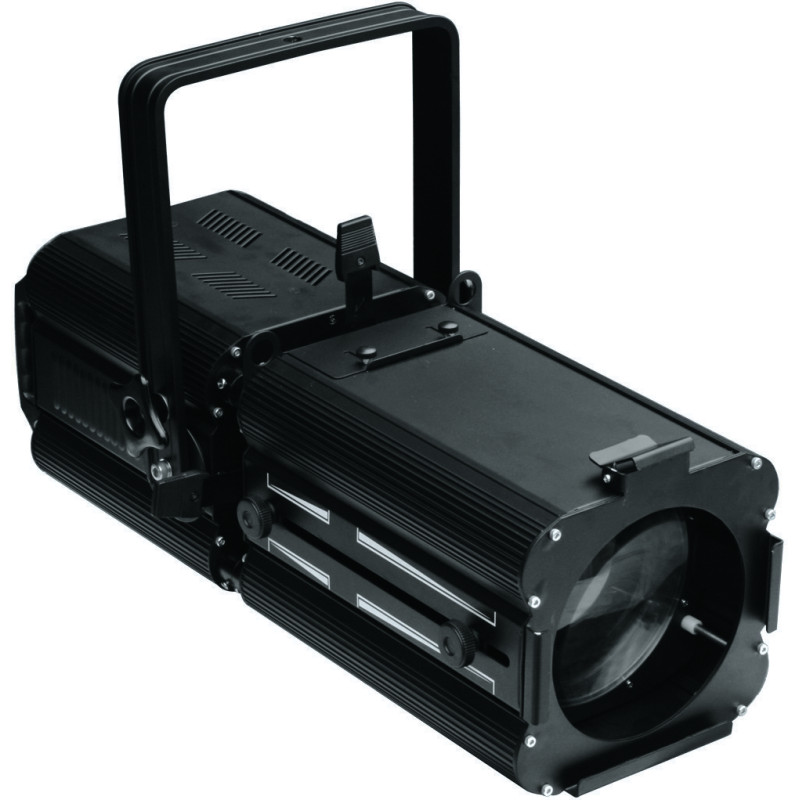

iPhos SWZ-200M
      iPhos SWZ-200M
      iPhos SWZ-200M
      iPhos SWZ-200M

      iPhos SWZ-200M
      200watt, 3200K, Warm White
      LED Profile Spot Projector with Manual Zoom and Focus

      RRP $1,275.00
      Including GST
      Next Working Day

      Order code: SWZ-200M

      Available Now

        Click HERE to Download Operating Manual

        What is included:

        • 1 x Light Fixture (including Yoke Bracket)
        • 1 x 1.5mtr, 3pin, Male XLR to Female XLR Signal Cable
        • 1 x 1.4mtr Mains Power Cable - AS/NZS 3112 Male Plug to Power con (NAC3FCA type - Blue)
        • 1 x Power con Connector (NAC3FCB type - White) for power-out
        • 1 x User Manual

        Features:

        ·         Flicker-free dimmer makes for a video friendly device

        ·         Built-in temperature sensor - automatically adjusts the light output, when the operating temperature aprroaches maximum operating levels, to prevent the LED lamp from overheating.

        ·         2 or 4 DMX channel operation

        ·         DMX512 signal-present indicator.

        ·         4 x 7segment digital display.

        ·         Detachable power and signal cables

        ·         Uniquely shaped reflective dish for a hotspot-free projection

        Electrical:
        Input Voltage, 90-240V AC-50/60Hz
        Max power: 250W

        Light Source:
        LED: 1 x 200watt 3200K, Warm White

        Control:
        Control Protocol: DMX512
        Personality: 1/2/3 channels
        Fixture Connection: Power in/out (powercon), DMX Data in/out.
        Control Mode: DMX, Stand Alone
        Beam Angle: Manual Zoom - 17        ° to 60°

        Optical System:
        Dimmer: 0-100% Linear dimming, high speed, flicker-free driver chip (video friendly).
        Strobe: 0-20Hz
        Beam Angle: Manual Zoom - 17        ° to 60°

        Environment:
        Dry / Indoor
        Ingress Protection Rating: IP20
        Operation Temperature:-20'C - +40'C

        Physical:
        Dimensions including Bracket (L*H*W) - Storage Configuration): 340*210*255mm
        Dimensions including Bracket (L*H*W) - Hanging with Barn Doors at 90° and Cables: 570*375*288mm
        Net Weight (excluding power cable): 5.54kg
        Net Weight (including power cable): 5.88kg
        Shipping (Gross) Weight: 6.34kg
        Shipping Dimensions: 240*240*330mm
        Housing: Die-cast Aluminium
        Cooling: Low Noise Fan Cooling
