Order Code: SCWZ-200M
200watt, Cool White + Warm White LED,
Profile Spot Projector with Manual Zoom and Focus

RRP $1,275.00
Including GST

Next Working Day

Order code: SCWZ-200M

Available Now

Overview
Specifications

Click HERE to Download Operating Manual

Features:

· Flicker-free dimmer makes for a video friendly device

· Built-in temperature sensor - automatically adjusts the light output, when the operating temperature aprroaches maximum operating levels, to prevent the LED lamp from overheating.

· 2 or 4 DMX channel operation

· DMX512 signal-present indicator.

· 4 x 7segment digital display.

· Detachable power and signal cables

· Uniquely shaped reflective dish for a hotspot-free projection

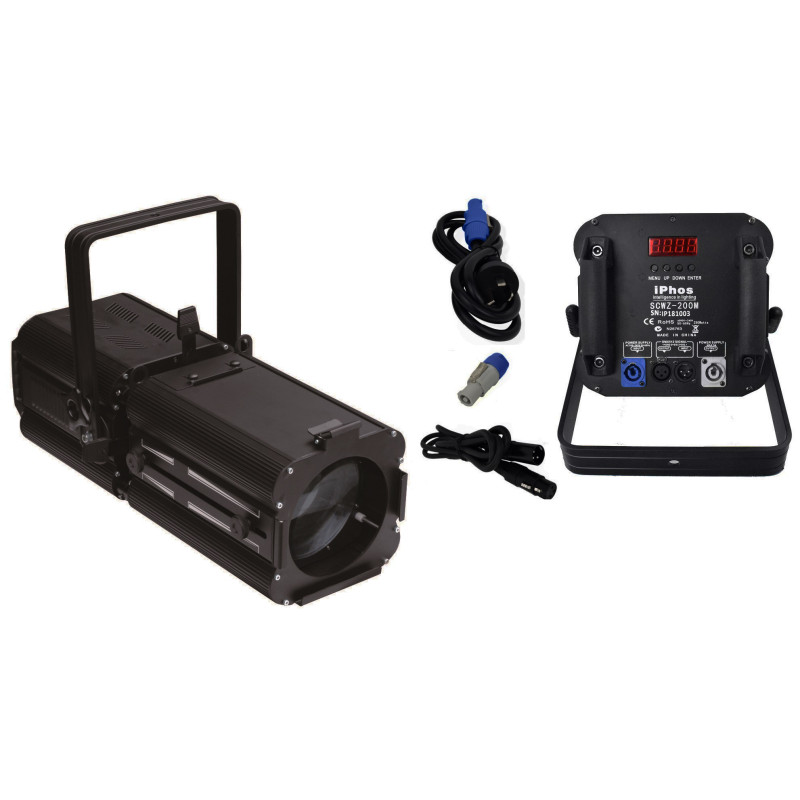

What is included:
1 x Light Fixture (including Yoke Bracket)
1 x 1.5mtr, 3pin, Male XLR to Female XLR Signal Cable
1 x 1.4mtr Mains Power Cable - AS/NZS 3112 Male Plug to Powercon (NAC3FCA type - Blue)
1 x Powercon Connector (NAC3FCB type - White) for power-out
1 x User Manual

Electrical:
Input Voltage, 90-240V AC-50/60Hz
Max power: 250W

Light Source:
LED: 1 x 200watt COB, CW (Cool White, Warm White)

Control:
Control Protocol: DMX512
Personality: 2/4 channels
Fixture Connection: Power in/out (powercon), DMX Data in/out.
Control Mode: DMX, Stand Alone
Beam Angle: Manual Zoom.17-50 degrees

Optical System:
Dimmer: 0-100% Linear dimming, high speed, flicker-free driver chip (video friendly).
Strobe: 0-20Hz
Beam angle: 60°

Environment:
Dry / Indoor
Ingress Protection Rating: IP20
Operation Temperature:-20'C - +40'C

Physical:
Lighting Fixture Dimensions including Bracket (L*H*W): 340*210*255mm
Net Weight (excluding power cable): 5.54kg
Net Weight (including power cable): 5.88kg
Shipping (Gross) Weight: 6.34kg
Shipping Dimensions: 240*240*330mm
Housing: Die-cast Aluminium
Cooling: Low Noise Fan Cooling
